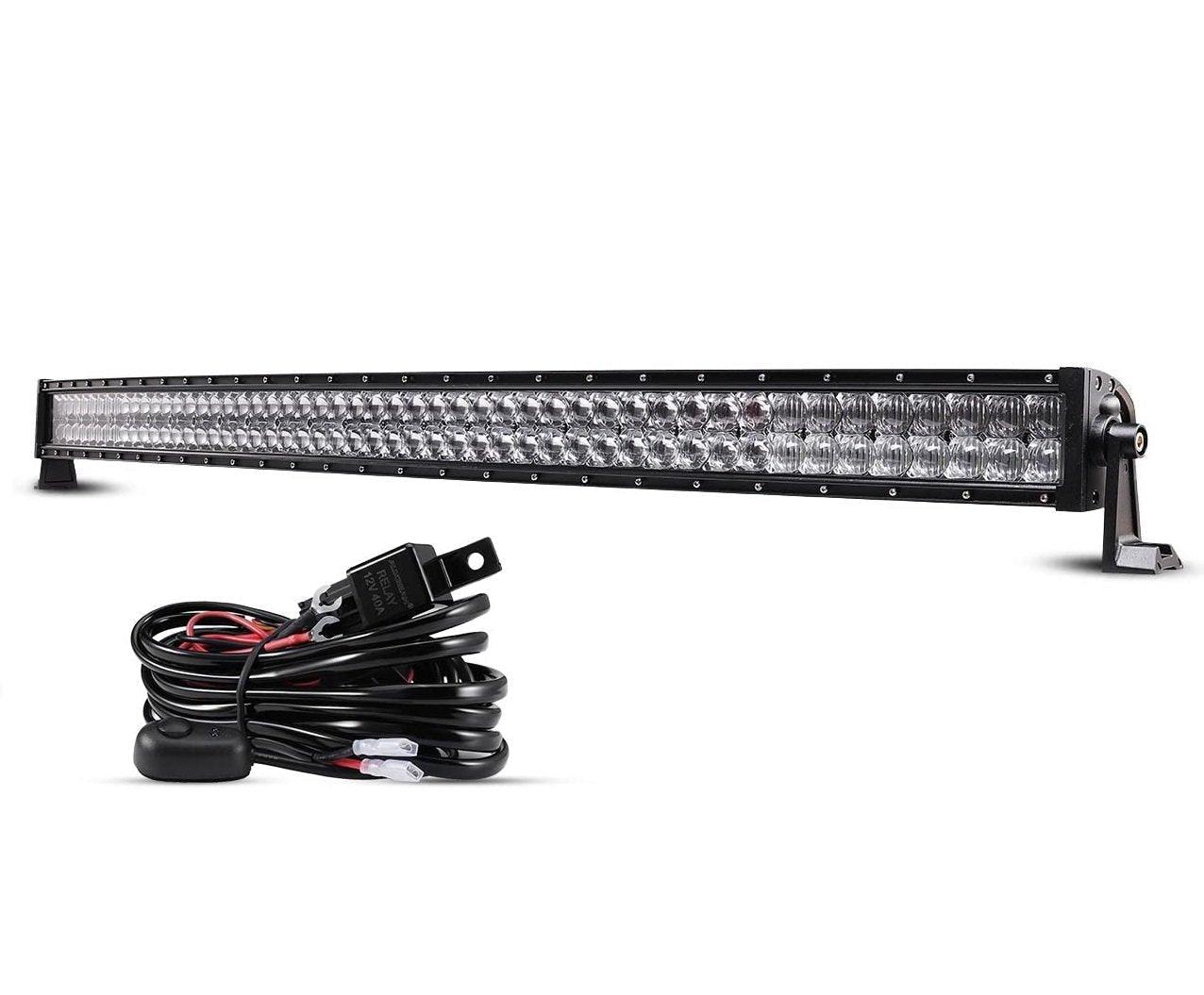

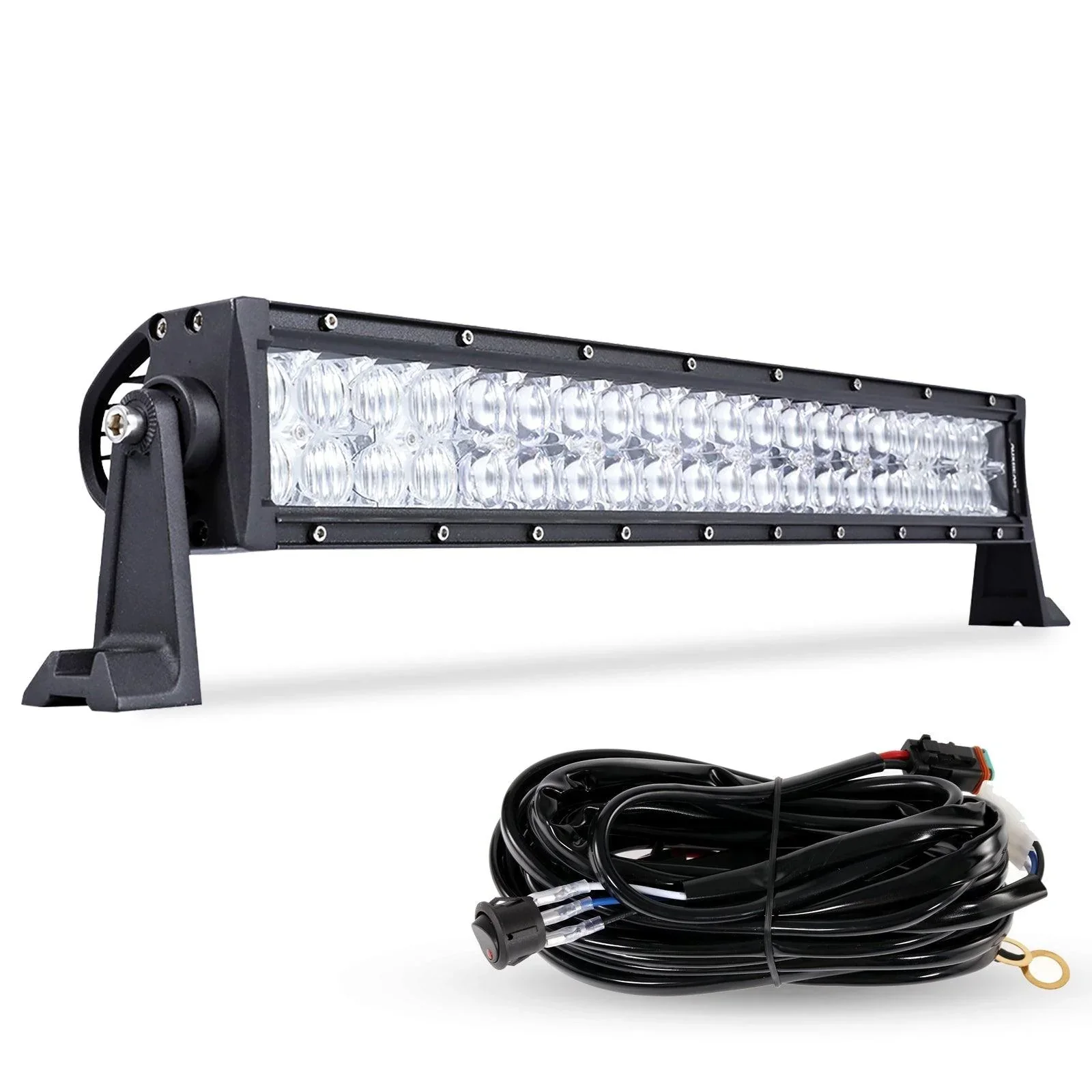

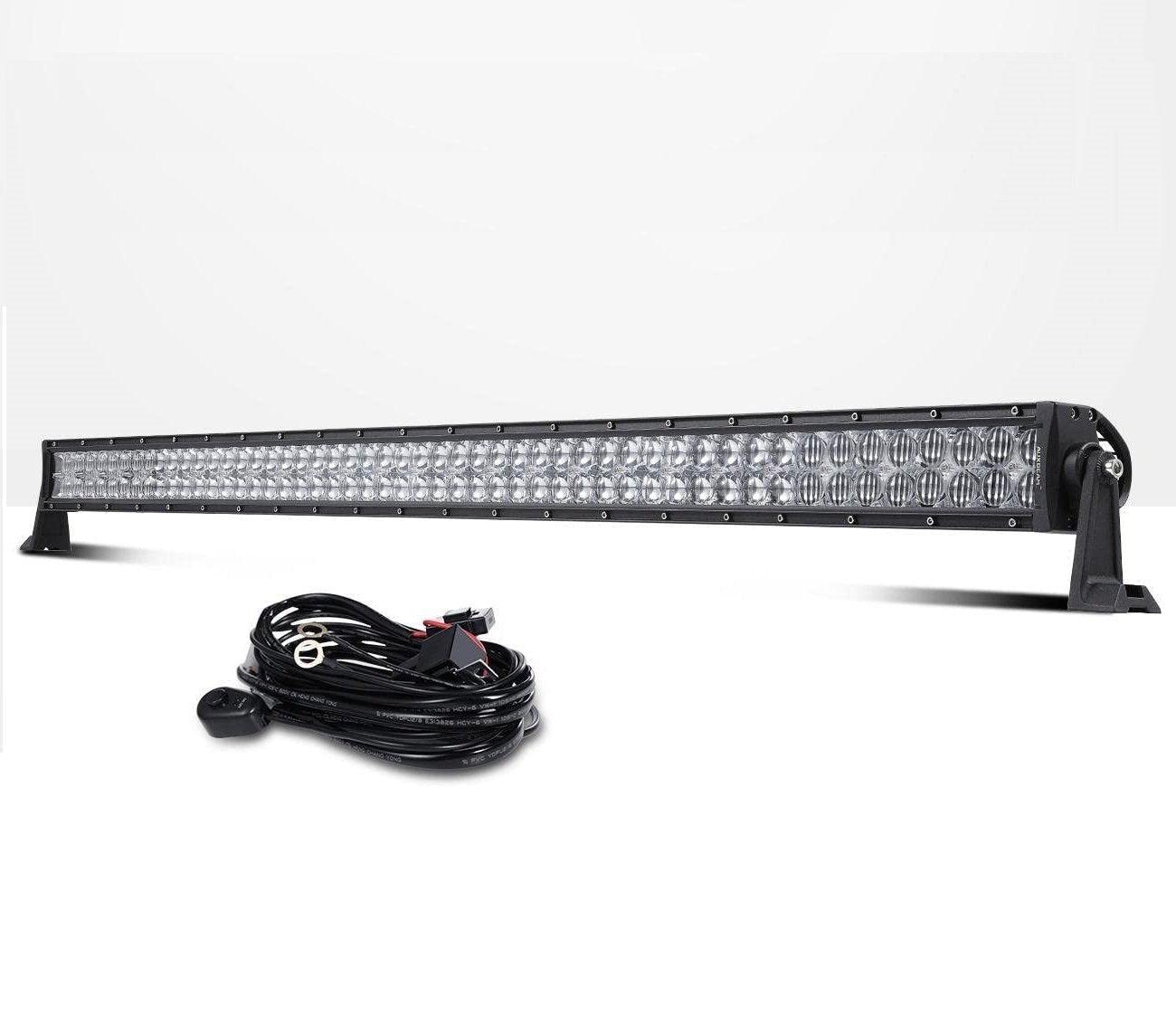

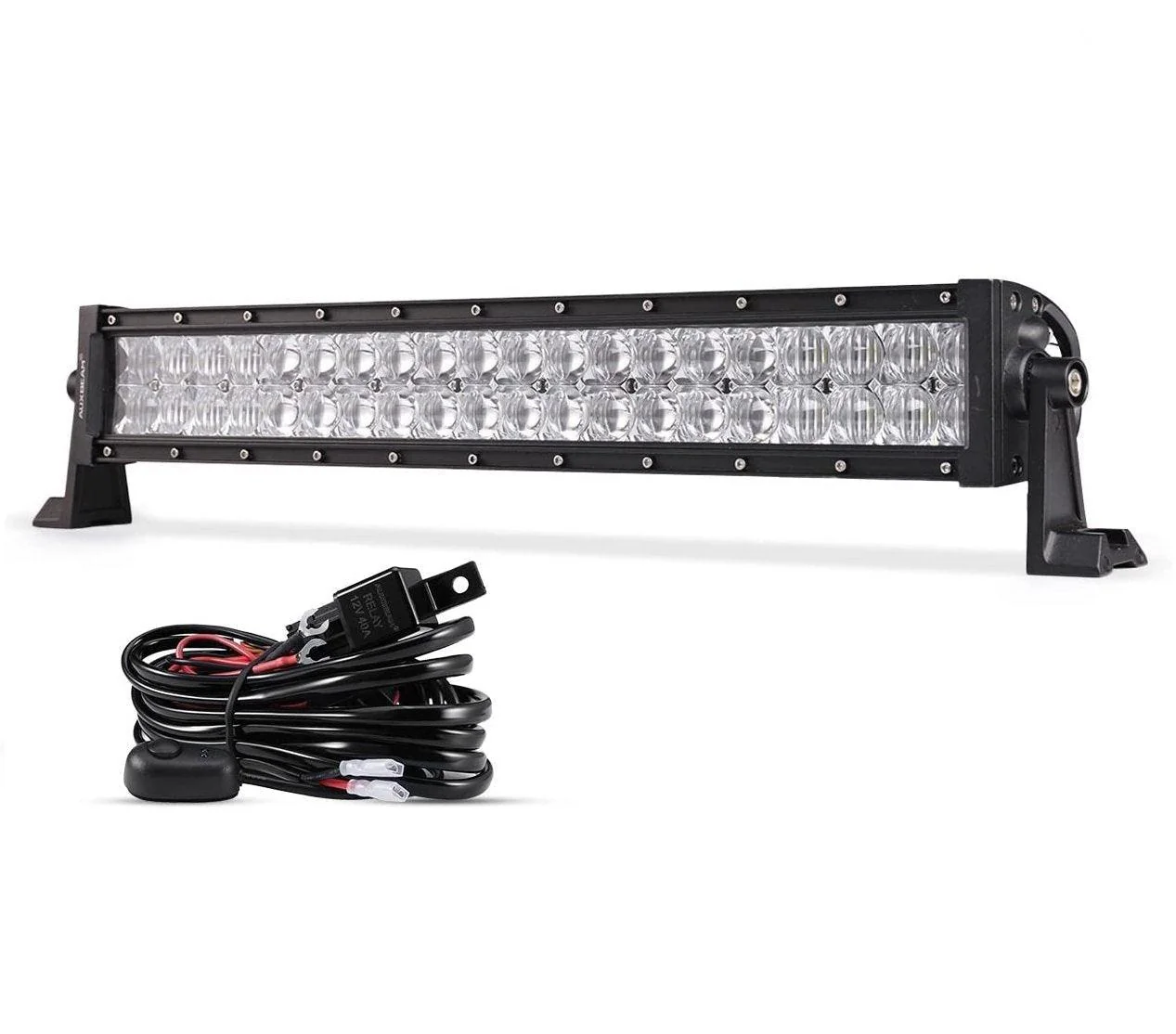

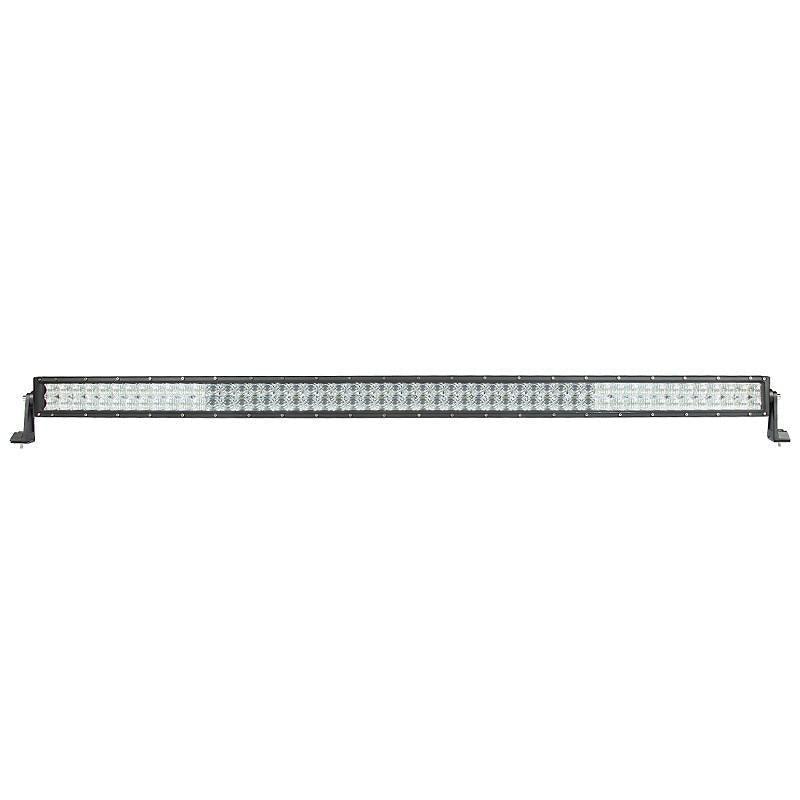

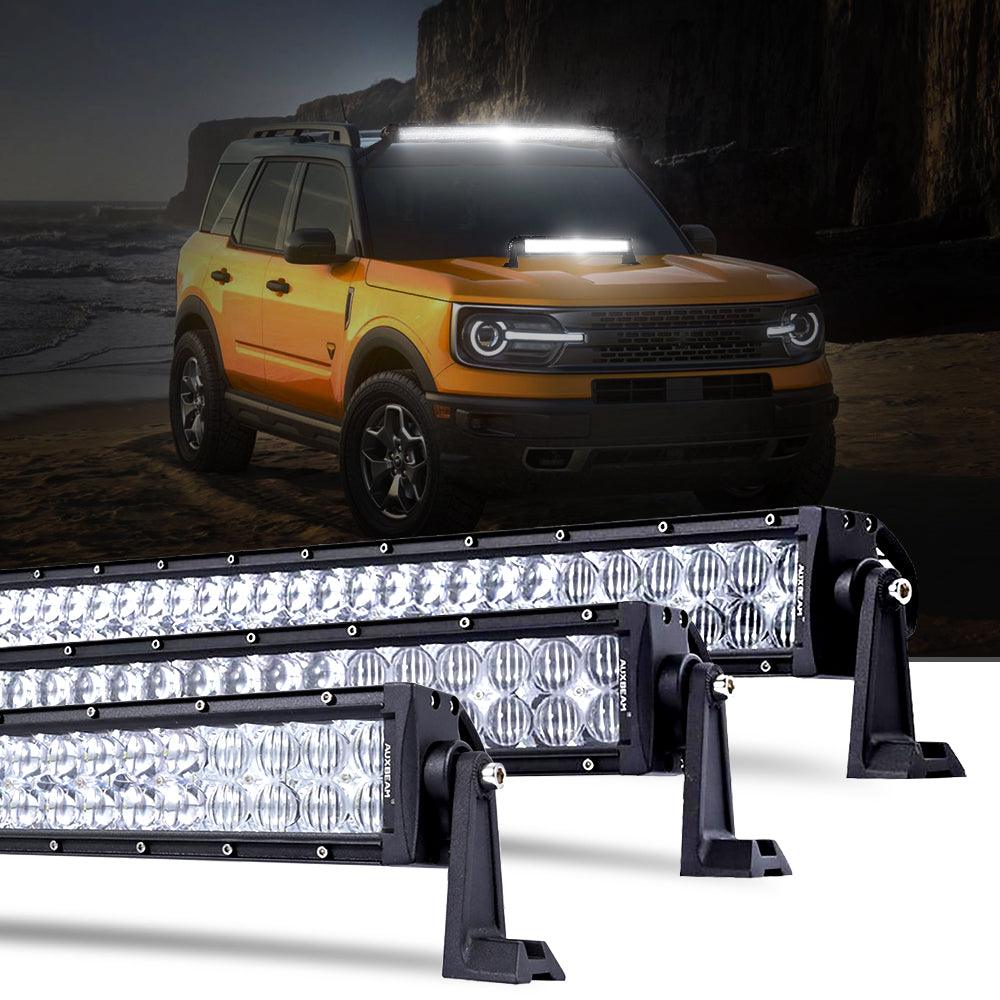

22 Inch-52 Inch 5D Series Straight/Curved Combo Beam Double Row LED Light Bar for Ford Bronco

Introduction:

• Adopting evolutional 5D optic tech (Dual reflector cup + projector lens) be used for the project more effective light to faraway and surround areas without foggy light/dark zone.
• Spot & flood beam integrated in a light bar for optimal light spread. Project light to extreme distance & keep bright surround lighting in close range.

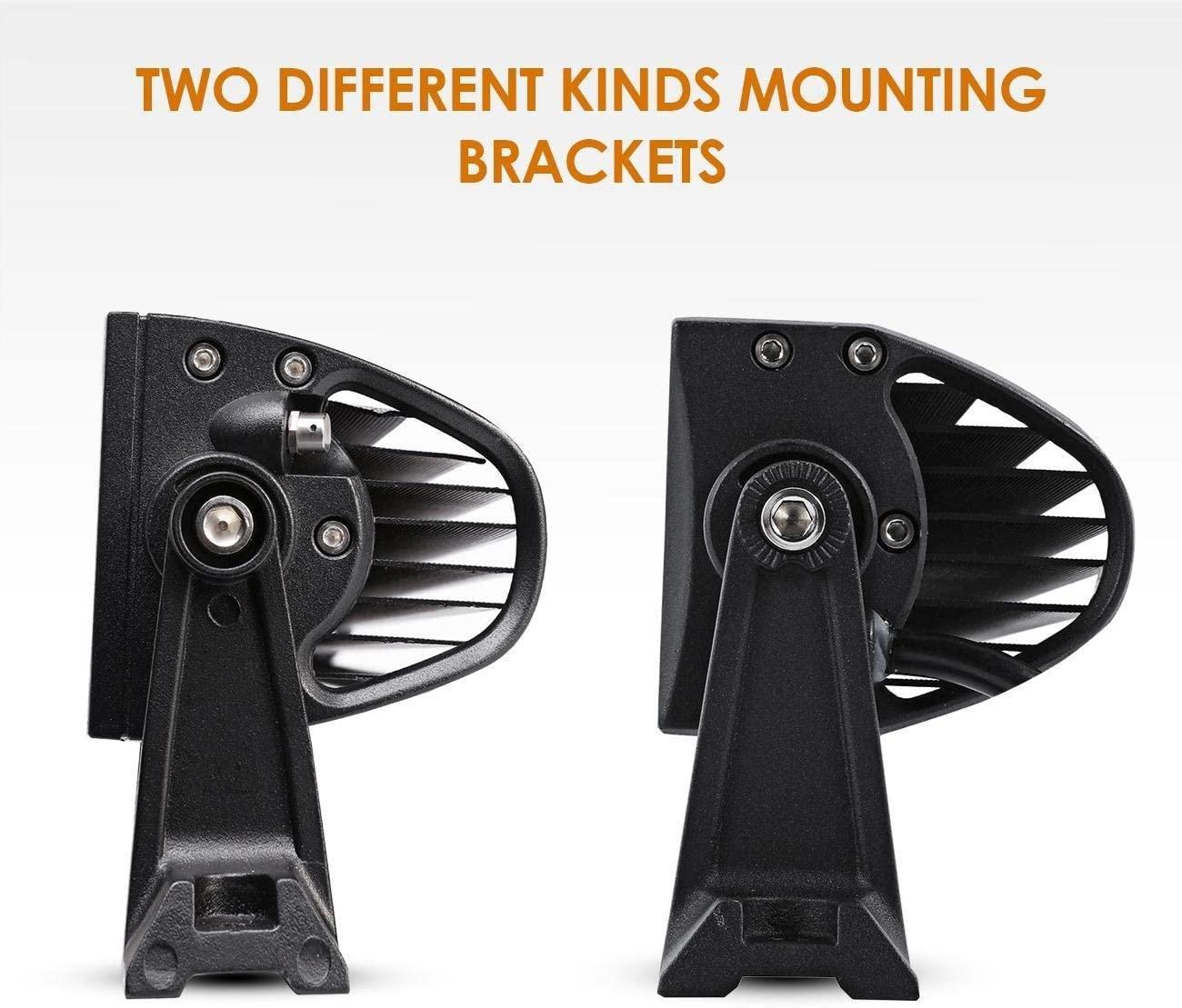

• Black extruded aluminum profile, high transmission PC lens, 360 angle rotating metal side brackets;
• IP67 rated waterproof & dustproof, durable enough to withstand any harsh environments, about 50,000 hours lifetime

Specifications:

SIZE	POWER	LUMENS
22" Straight 25*4.8*3.5(with bracket) 22*3*3.5(without bracket)	120W-40pcs*3W	12000LM
22" Curved 25*4.8*3.5(with bracket) 22*3*3.5(without bracket)	120W-40pcs*3W	12000LM
32" Straight 35*4.8*3.5(with bracket) 32*3*3.5(without bracket)	180W-60pcs*3W	18000LM
32" Curved 35*4.8*3.5(with bracket) 32*3*3.5(without bracket)	180W-60pcs*3W	18000LM
42" Straight 46*4.8*3.5(with bracket) 43*3*3.5(without bracket)	240W-80pcs*3W	24000LM
42" Curved 46*4.8*3.5(with bracket) 43*3*3.5(without bracket)	240W-80pcs*3W	24000LM
50" Straight 52.3*5.1*3.5(with bracket) 50*3.2*3.5(without bracket)	288W-96pcs*3W	28800LM
50" Curved 52.3*5.1*3.5(with bracket) 50*3.2*3.5(without bracket)	288W-96pcs*3W	28800LM
52" Straight 55*4.8*3.5(with bracket) 52*3*3.5(without bracket)	300W-100pcs*3W	30000LM
52" Curved 55*4.8*3.5(with bracket) 52*3*3.5(without bracket)	300W-100pcs*3W	30000LM



LED Type: 2525 chips
Pcs/Set: 1
Beam Type: Spot(30 degree) & Flood(60 degree) Combo
Color temperature: 6500K Cool White
Operating Voltage: 9-32V
Material: Black Diecast aluminum alloy housing
Mounting Bracket: Diecast aluminum alloy
Waterproof rate: IP67
Working Temperature:-40~85 degree Celsius
Lifespan: 50,000 Hours

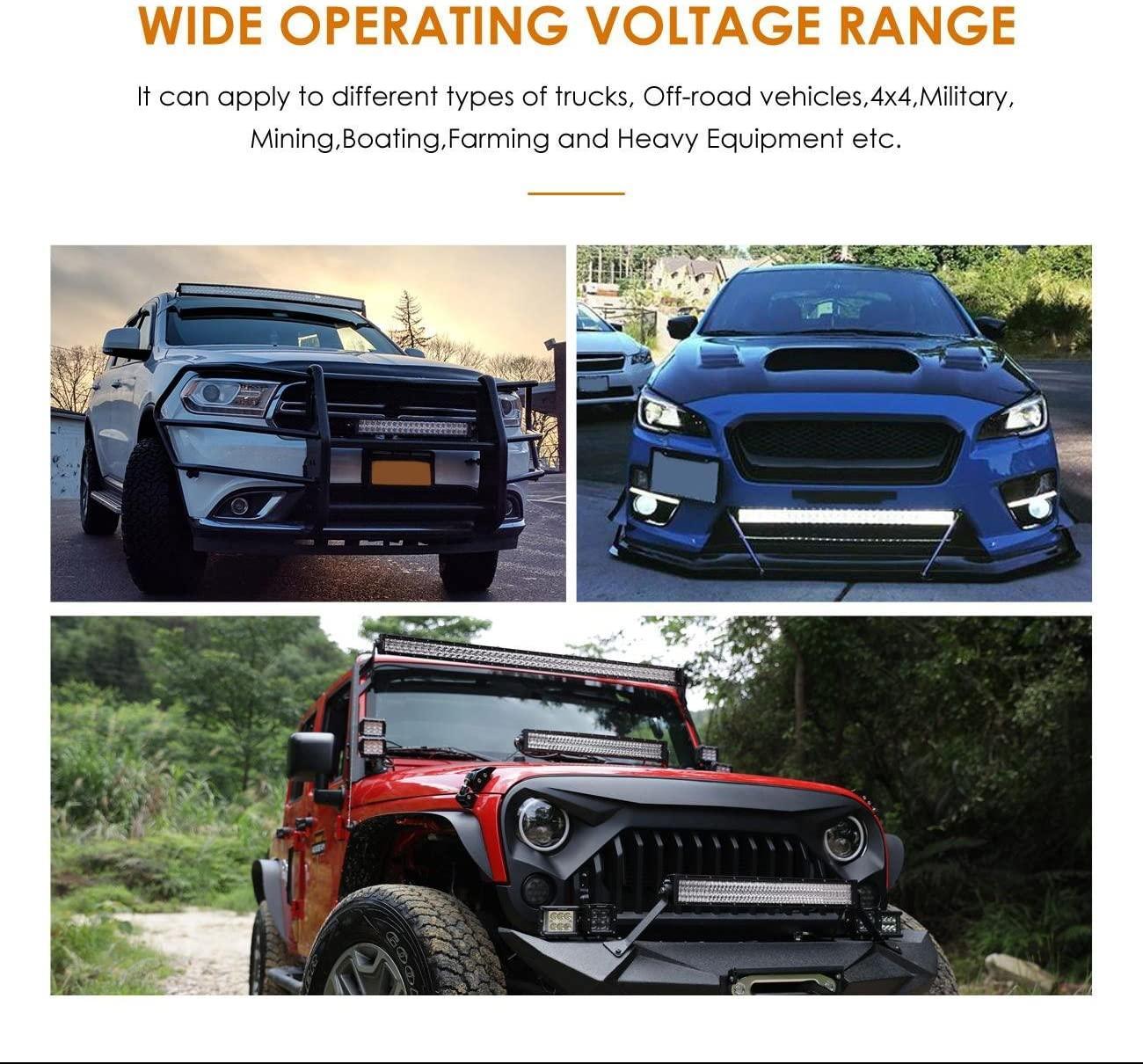

Wide range of applications:

Off-Road vehicles-ATVs, SUV, truck, Fork lift, trains, boat;
Specialized vehicles-Fire engine, police cars, rescue vehicle, Communication vehicle, military command vehicle etc;
Engineering vehicles-Excavator, dozer, road roller, bulldozer, crane and mining truck etc.

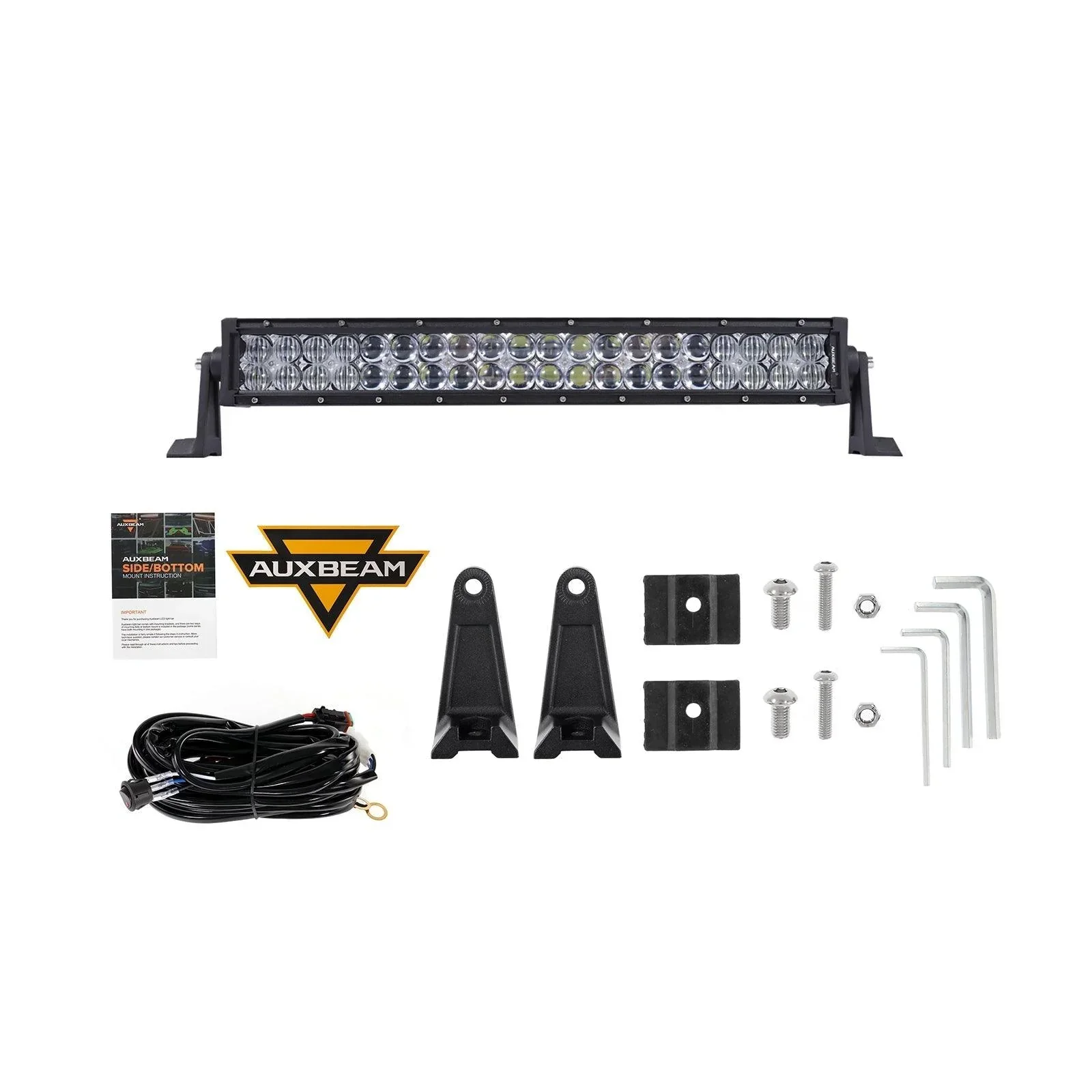

Package Included:

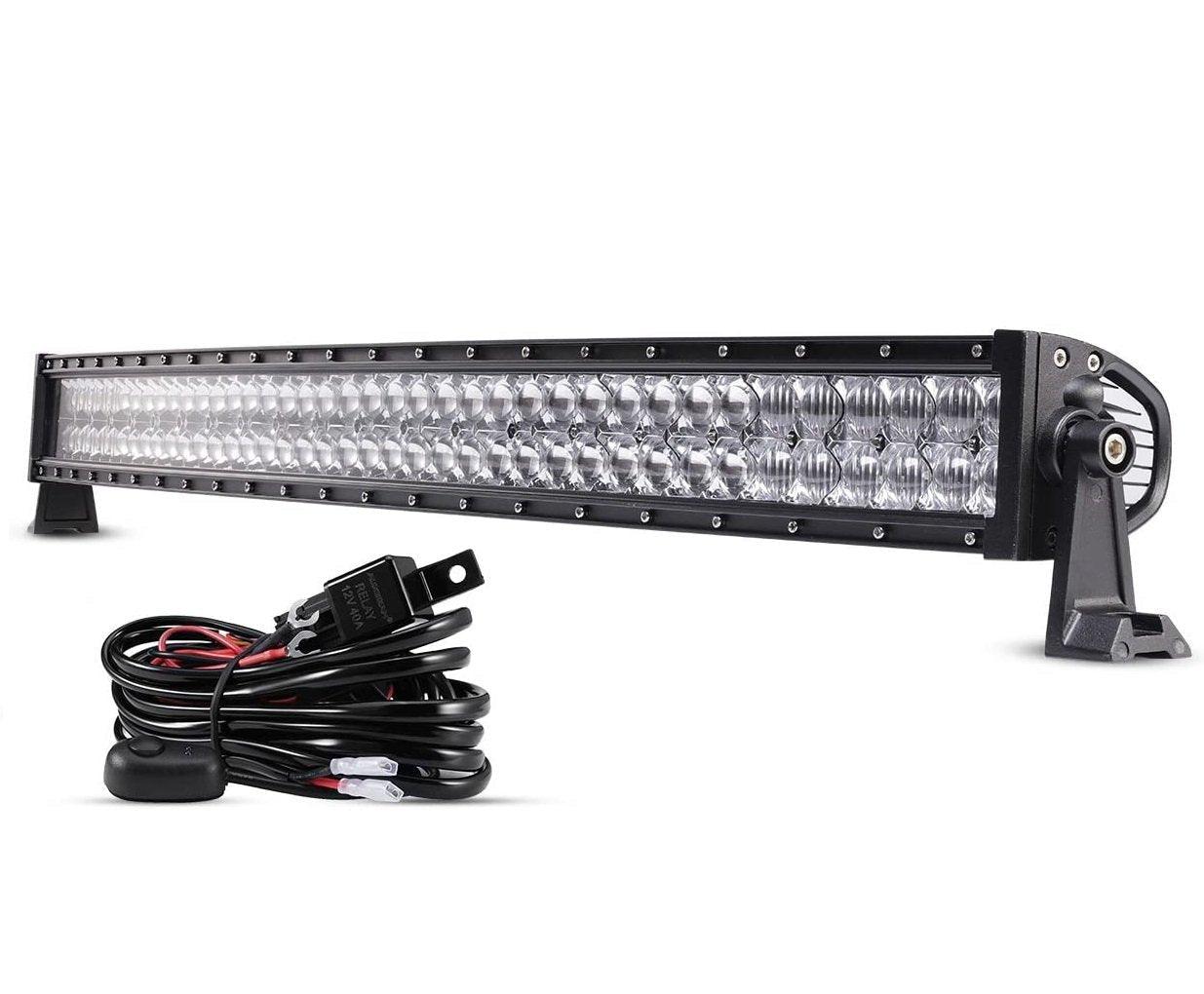

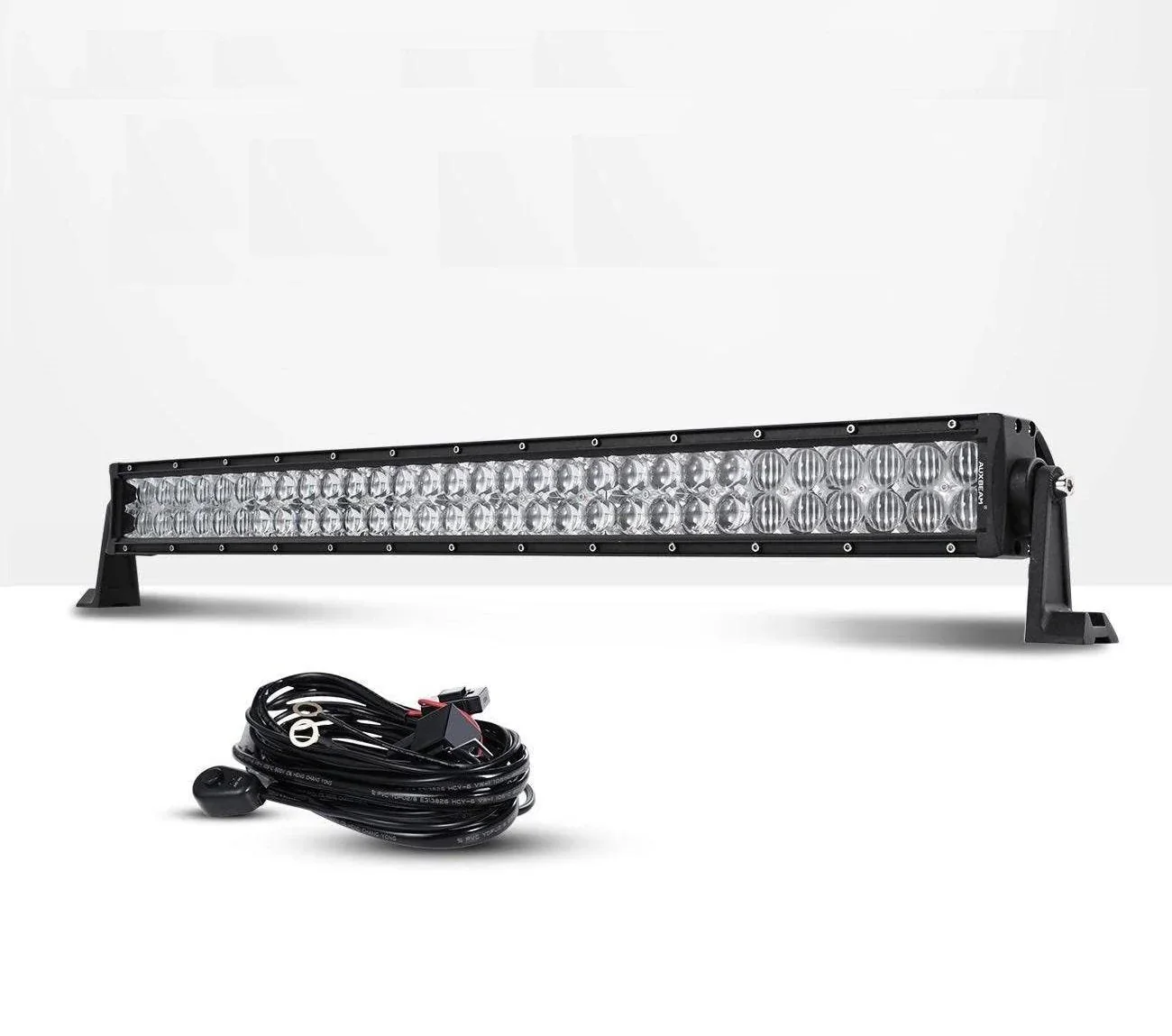

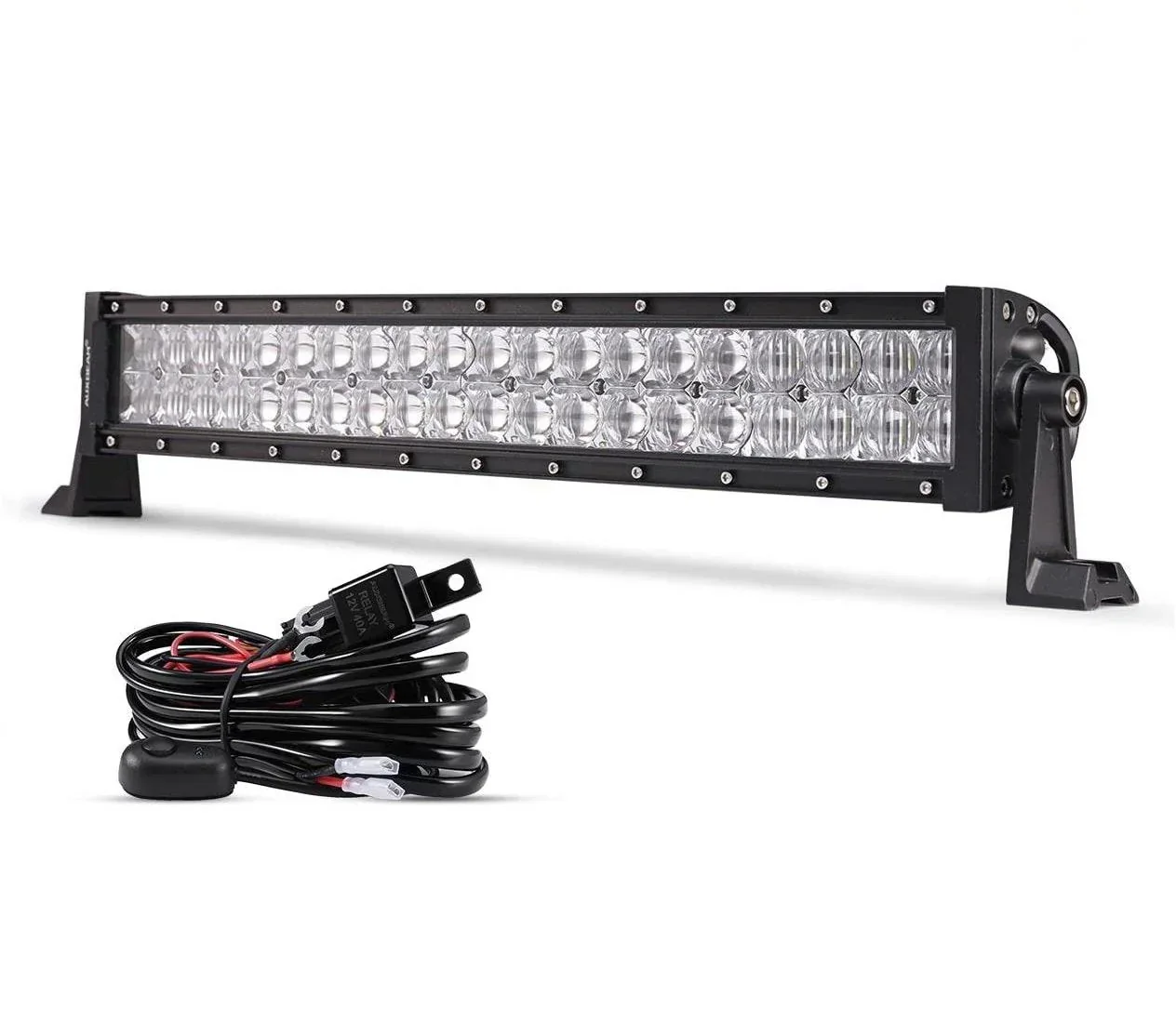

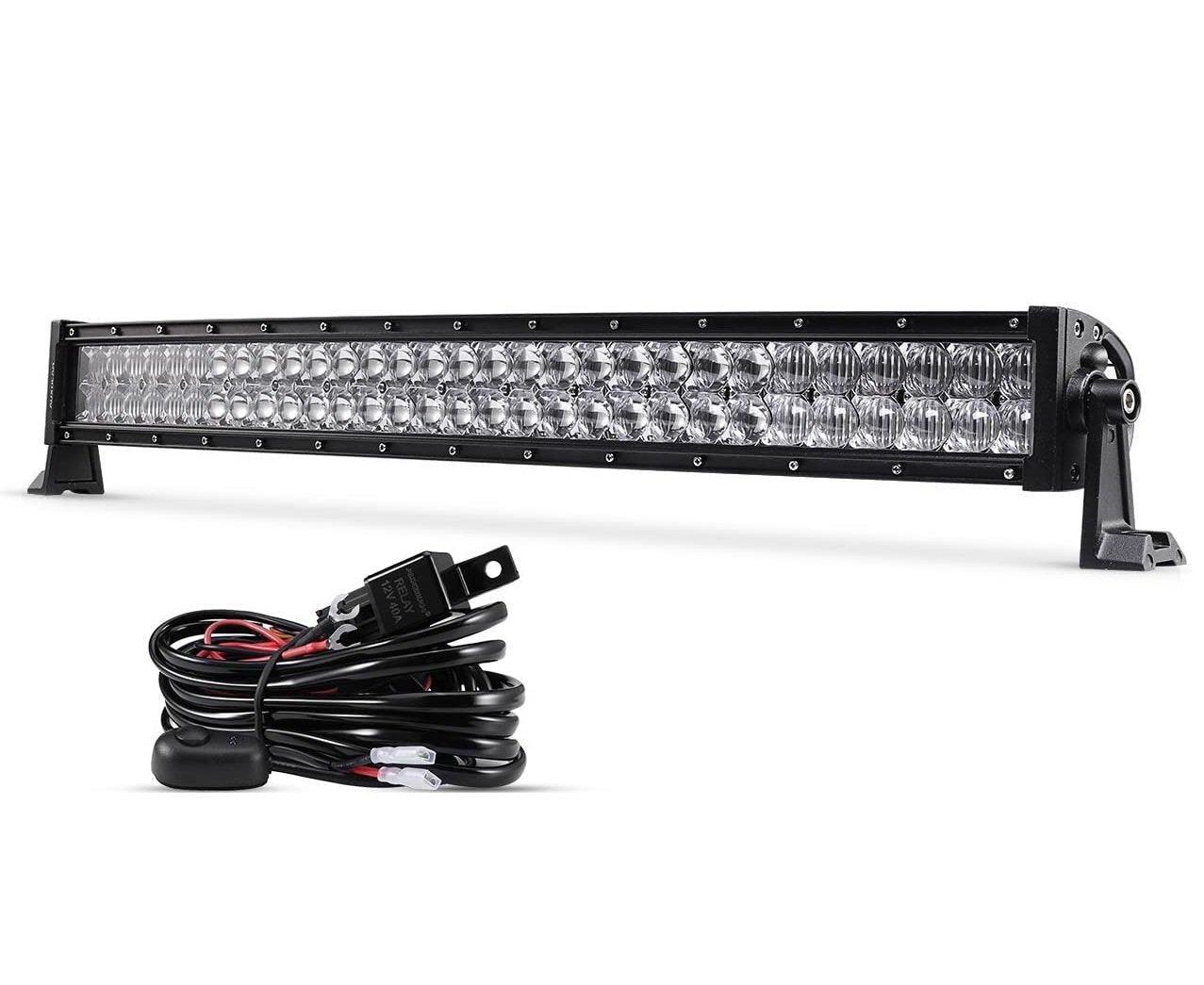

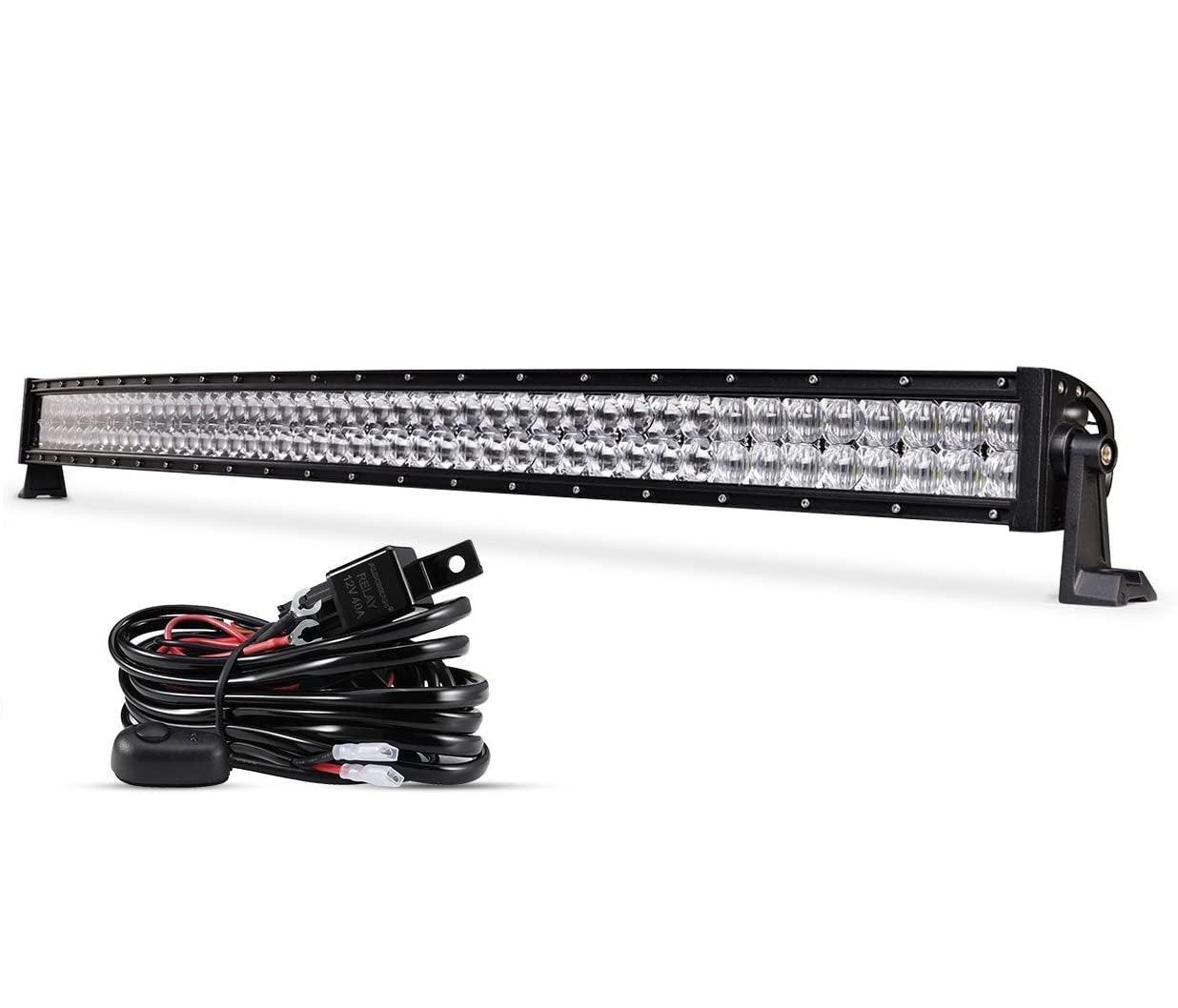

LED light bar *1
Side brackets(rubber pads included) *2
Wiring harness kit with relay and fuse *1
Necessary mounting hardware like bolts, washers, nuts included
